适合于适应范围广的专用系统。
可用于继电器、Sleeve Tube、电线及电缆、高尔夫球、Lables等的marking。
按字数、启动方式分几种类型。可按用户订单制作。
H402-7 with 7 wheels H402-12 with 12 wheels
H402-18 with 18 wheels

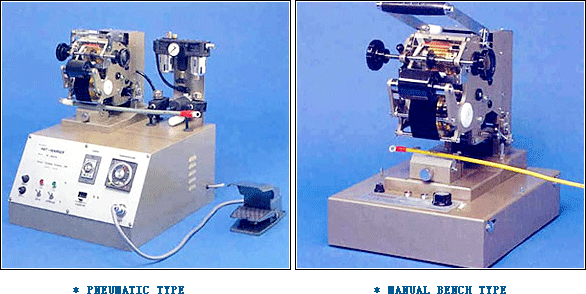

H402 A-7 with air pressure H402 A-12 with
air pressure H402 A-18 with air pressure
输入电压：100, 110, 115, 220, 230 or 240V AC
加热器容量：80, 150 or 200W
字体大小：2.4x 2.4mm standard, 1.8mm x 1.8mm etc.
字母Pitch: 基本是3.0 mm
字母版面区分：平板或弯曲板
字母种类: A to Z, 0 to 9, +, -, /, . and blank
(total 40 facets)
Wheel种类：7, 12 or 18 wheels, Maximum 21 wheels
as special
空气压力：4.8kg (H402A series) |
| |
 |
| 手配制作企业或化学色彩板制造企业 |
| |
 |
重量：21.0kg (H402),
33.0kg (H402A series)
大小：310(W) x 360(D) x 380(H)mm (H402 series)
380(W) x 470(D) x 500(H)mm (H402A series) |
| |
 |
 |
|
| |
|
| |
|
|
|
|
